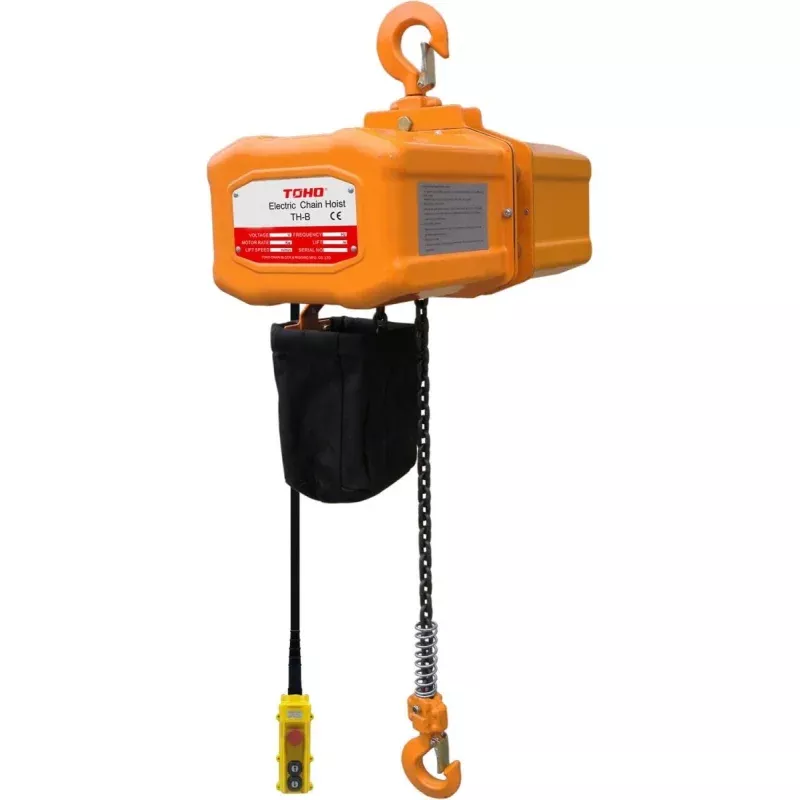

The Toho Single Phase Electric Chain Hoist range (by Garrick) offers compact, load-limited hoists for everyday lifting in workshops, factories and warehouses. All models run on standard 240V single-phase power, use a Grade 80, 7.1 mm alloy steel load chain, and are fitted with a load limiter, thermal overload protection and an emergency stop for safer operation. The range is available in 1 tonne and 2 tonne capacities with 3 m or 6 m standard lifts.
Each hoist has high-tensile alloy steel top and bottom hooks, limit switches top and bottom to prevent chain run-out, and a DC electromagnetic brake that holds the load when the motor stops. The pressed-steel body keeps them light and compact, and an optional TECH-RP remote pendant can be fitted. The Toho single-phase hoist range complies with AS/NZS 1418.2.
Model range
| Model | Capacity | Standard lift | Lifting speed | Chain falls | Net weight |
|---|---|---|---|---|---|
| TECH0103 | 1 t | 3 m | 6 m/min | 1 | 60 kg |
| TECH0106 | 1 t | 6 m | 6 m/min | 1 | 63 kg |
| TECH0203 | 2 t | 3 m | 3 m/min | 2 | 65 kg |
| TECH0206 | 2 t | 6 m | 3 m/min | 2 | 71 kg |
- Factories and production lines repetitive lifting within rated capacity
- Workshops and maintenance engine, plant and equipment lifting
- Warehouses and logistics loading, unloading and stock handling
- Overhead systems as part of a crane or gantry setup
Full specifications, applications and safety features are in the tabs below. Choose your capacity and lift from the model options.
