6.6 GPM – Adjustable Low-Pressure Foam Head

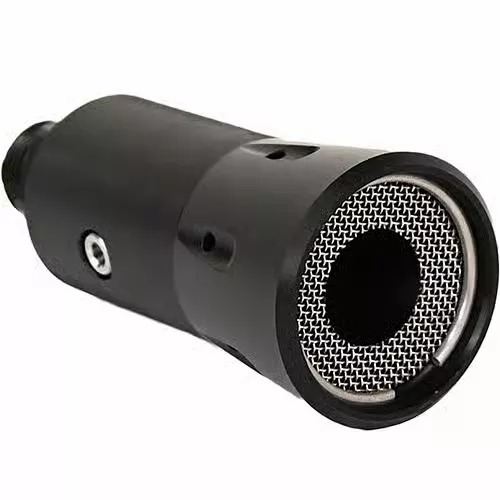

The Suttner ST-75.3 Active Low-Pressure Foam Head is an adjustable nozzle that produces foam by drawing in air when the foam setting is selected, then mixing it with the water-chemical solution when connected to a chemical injector. It is designed to be compatible with water pressure boosting systems, including centrifugal pumps and high-pressure cleaners. This nozzle can be used with an injector that includes a valve to turn the rinse and chemical lines on or off as needed, or with an injector that can switch between multiple cleaning agents. Operators can easily switch the spray pattern between a conical wide spray jet and a long-distance full jet. Plus, it is infinitely adjustable. The housing is constructed with impact-resistant plastic that withstands abuse in heavy-use environments. Corrosion-resistant fluid-handling components help support reliable performance and long service life when used with approved chemicals. It can be used in systems that run up to 363 PSI, 6.6 GPM, and fluids up to 176 degrees Fahrenheit.
Benefits:
- Adjustable Jet Pattern: Turn the head to change from a conical wide spray jet to a long-distance full jet.
- Easy Jet Adjustment: The spray pattern can be easily adjusted with a single turn.
- Active Foam Generation: The foam head draws in air and mixes it with the water-chemical mixture to create foam when in the foam setting.
- Corrosion-Resistant Components: Parts that come into contact with fluid are made from corrosion-resistant materials.
- Impact-Resistant Housing: The outer housing is made from impact-resistant plastic to help protect it in demanding environments.
- Multiple Spray Patterns: The adjustment head can create funnel-shaped foam spray, funnel-shaped water cone, or point-shaped water jets when used within the listed operating conditions. Plus, the spray pattern is infinitely adjustable.
Specifications:
- Manufacturer Part Number: 200075900
- KR Product Number: SUT075900
- Product Name: ST-75.3 Active Low-Pressure Foam Head
- Pressure Range: 3–25 bar / 43.5–363 PSI
- Maximum Temperature: 80 °C / 176 °F
- Maximum Flow: 25 l/min / 6.6 GPM
- Inlet: 1/2″ M
- Outlet Diameter: 49.5 mm
- Length: 120 mm / 4.72″
- Fluid Approval: Group II fluids according to EGV 1272/2008
- Housing Material: Impact-resistant plastic
- Media Contact Components: Corrosion-resistant materials
Recommended Accessories:
- ST-160.3 Chemical Injector
- ST-515 Chemical Gun
- ST-510 – Kleen-Rite does not currently carry this older chemical gun. However, if you already have an ST-510 and do not want to upgrade to the newer ST-515, it is compatible and can still be used.
Usage Limits & Safety Requirements:
- All system components should be rated to work together. The component with the lowest pressure, temperature, flow, or other operating limit sets the maximum safe operating limit for the entire system.
- ST-75.3 is only approved for use with Group II fluids in accordance with EGV 1272/2008. This can be, for example, water and diluted commercially available cleaning or disinfecting agents.
- All safety regulations and regulations for high-pressure cleaners, such as DIN EN 60335-79-2 and DIN EN 1829-1, must also be followed.
Jet Shape Settings:
- Funnel-shaped foam jet (> ø 20; injector in suction mode)
- Funnel-shaped water jet (<ø 20; e.g., for rinsing – NO injector operation)
- Point-shaped water jet (<ø 20; e.g., for rinsing – NO injector operation)
FAQs:
What systems can the ST-75.3 foam head be used with?
The ST-75.3 is intended for water pressure boosting systems, including centrifugal pumps and high-pressure cleaners.
What is the pressure range in PSI?
The ST-75.3 is rated for 3 to 25 bar, which equals 43.5 to 363 PSI.
What spray patterns can it create?
The adjustment head can be adjusted from a conical, wide-spray jet to a long-distance full jet (narrow spray angle).
What chemical gun is recommended?
Suttner recommends the ST-510 chemical gun for the ST-75.3 low-pressure foam head.
