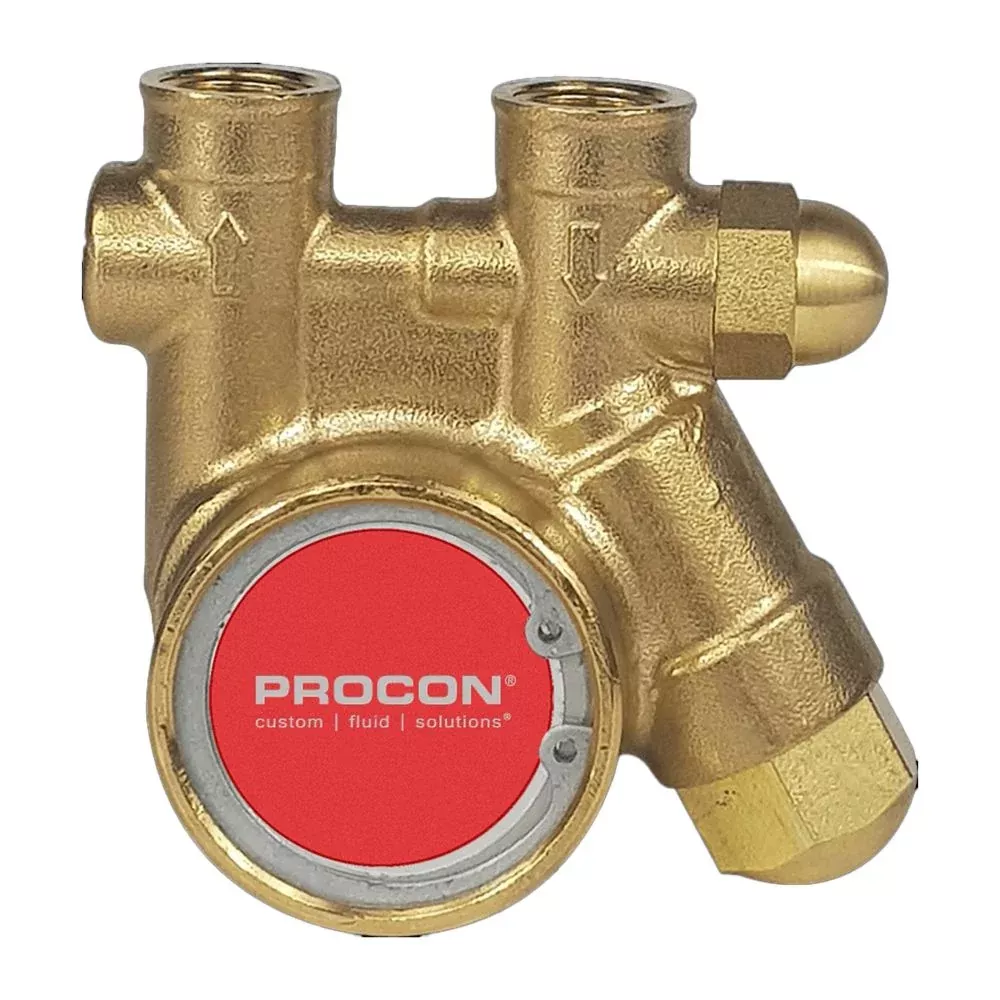

Procon 102L100F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive with an oversized coupler. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102L100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute.
Features:
The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102L100F11XX pump is designed to be bolted directly to the motor.
Additional Specifications:
- Capacity: 100 GPH
- Nominal Speed: 1725 RPM
- Maximum Discharge Pressure: 250 PSI
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 3/8″ NPT Inlet and Outlet
- Oversize Coupler
