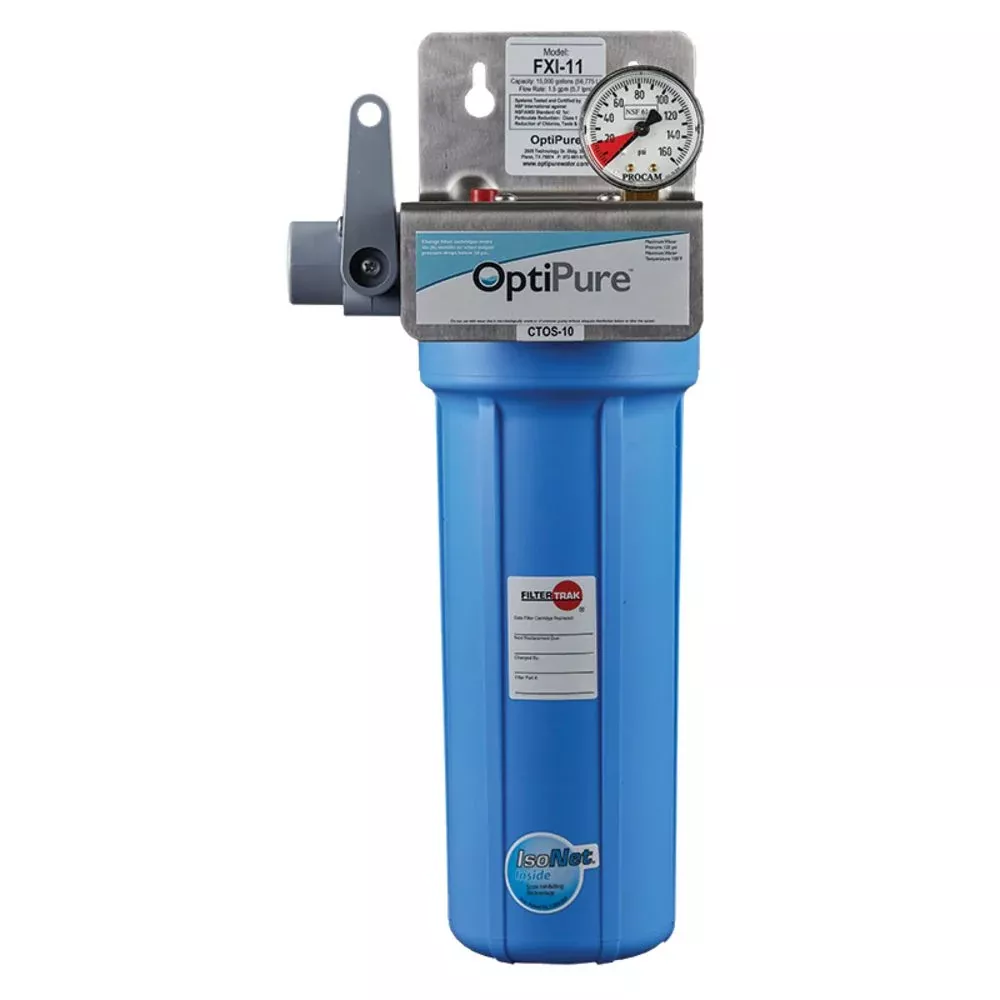

This Optipure 160-50010 FX-11 Single 10″ System is a single-housing water treatment system with a drop-in 10” cartridge that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 1.5 gpm for 15,000-gallons.
Features:
- Improves quality and consistency of cold and hot beverages.
- Reduces maintenance frequency and cost, and extends equipment life.
- Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
- High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
- Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
- Built-in pressure gauge allows visual monitoring of when filters need to be changed.
- Inlet shut-off and depressurization valves make filter replacement quick and simple.
- Minimizes waste by only replacing drop-in cartridge and reusing filter sump.
- NSF Certified under Standard 42.
Specifications:
- Connection: Inlet & Outlet 1/2” FNPT
- Operating Pressure Range: 10 – 125 psi (0.7 – 8.6 bar)
- Inlet Water Temperature Range: 35˚ – 100˚F (2˚ – 38˚C)
- Service Flow Rate: 1.5 gpm (5.7 lpm)
- Sediment Reduction: 0.5 microns (nominal)
Installation Tips:
- Feed-water connection to system should be COLD only.
- Do not exceed system specifications for temperature and pressure.
- Allow 3” clearance below system for filter housing removal and cartridge replacement.
- Detailed installation, operation and maintenance manual included with each system.
- No activation procedure or flushing required for system to perform as specified.
