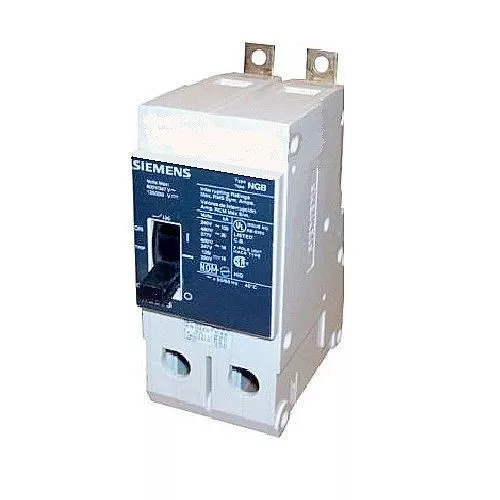

NGB2B030B

NGB 30 Amp, 600V, Circuit Breaker, Siemens NGB2B030B, NGB 30A | aka: ITE NGB2B030B, ITE Siemens NGB2B030B, UPC: 783643414136

Description:

• Siemens NGB2B030B, NGB 30 Amp, 600V, Circuit Breaker, NGB 30A | aka: ITE NGB2B030B, ITE Siemens NGB2B030B, UPC: 783643414136
• Bolt On Mounting
• Frame Type: NGB
• Dimensions: 2 Inch Wide x 4.5 Inch High x 3.3 Inch Deep
• Weight: 2.6lbs.
• Wire Size: Lug Kit 3TA1EG10 (14 AWG to 1/0 AWG Copper/Aluminum)
• NGB, 30A, 600V AC, 2 Pole
• Interrupting Rating at 240 Volts AC: 100,000
• Interrupting Rating at 480 Volts AC: 25,000
• Thermal Magnetic
