Home » Shop » hot sale » Latch Clamp, U-Bolt, w/Lever, 720 Lbs, 1.97

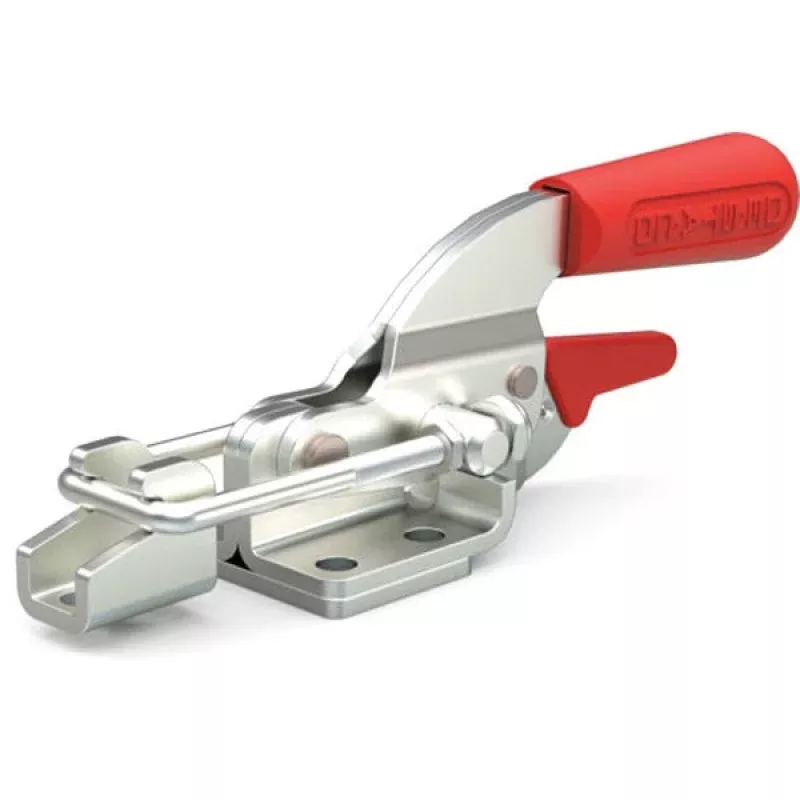

Latch Clamp, U-Bolt, w/Lever, 720 Lbs, 1.97

Original price was: $9.73.Current price is: $6.20.

Sale!

72 in stock

SKU: 7998942516 Category:
Share
Mfr 331-R
Item Latch Clamp
Type U-Bolt
Holding Capacity (Lb.) 720
Body Material Steel
Latch Centerline 0.656 in
Includes Ergonomic Grip
Arm U Bolt
Base Mounting Centers (In.) 0.75 x 1.25
Adjustable Range 0-0.59
Includes Locking Handle Yes
Lock & Handle Horizontal Yes
Latch Release Style Manual Latch Release
Exerted Force : Applied Force – Pushing 32:1
Latch Plate Included Includes Latch Plate
Mounting Holes Center to Center – Short Side 0.75 in
Holding Capacity – Maximum 700 lbf
Latch Plate Includes Latch Plate 331005
Recommended Latch Plate Manufacturer Model Number 331005
Requires Articulation Yes
Hook Type Horizontal U
Base Mounting Style Flange
Handle Style Locking Horizontal Handle
Handle Orientation Horizontal
Mounting Holes Center to Center – Long Side 1.25 in
Body Type Steel Body
Includes Latch Plate Yes
Drawing Movement Without Thumb Control 1.75 in
Hook Adjustment – Maximum 0.87 in
Exerted Force : Applied Force – Pulling 32:1
