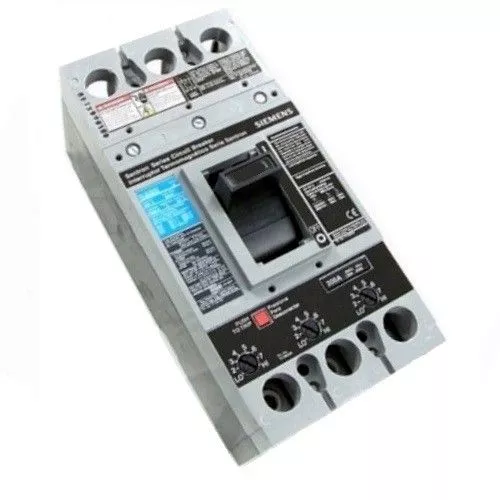

HHFD63B225

HHFD 225 Amp, 600V, Circuit Breaker, Siemens HHFD43B225, HHFD 225A | aka: ITE HHFD43B225, ITE Siemens HHFD63B225, UPC: 783643304314

Description:

• Siemens HHFD63B225, HHFD 225 Amp, 600V, Circuit Breaker, HHFD 225A | aka: ITE HHFD63B225, ITE Siemens HHFD63B225, UPC: 783643304314
• Bolt On Mounting
• Frame Type: HHFD
• Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
• Weight: 10lbs.
• Wire Size: Lug Kit TA1FD350A (6 AWG to 350 Kcmil)
• HHFD, 225A, 600V AC, 3 Pole
• Interrupting Rating at 240 Volts AC: 200,000
• Interrupting Rating at 480 Volts AC: 100,000
• Interrupting Rating at 600 Volts AC: 25,000
• Thermal Magnetic
