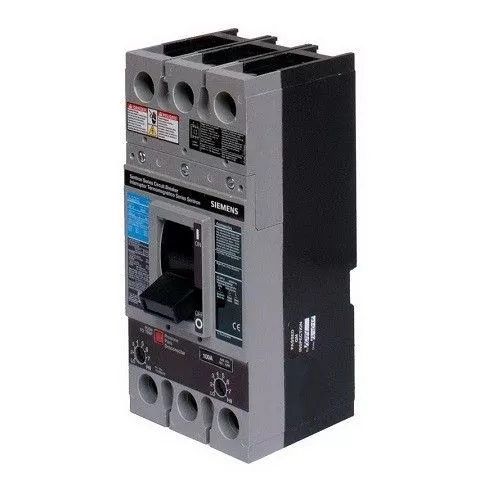

FXD62B100

FXD 100 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B100, FXD 100A | aka: ITE FXD62B100, ITE Siemens FXD62B100, UPC: 783643211117

Description:

• Siemens FXD62B100, FXD 100 Amp, 600V, Circuit Breaker Trip Unit, FXD 100A | aka: ITE FXD62B100, ITE Siemens FXD62B100, UPC: 783643211117
• Bolt On Mounting
• Frame Type: FXD
• Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
• Weight: 9lbs.
• Wire Size: Lug Kit TA1FD350A (6 AWG to 350 Kcmil)
• FXD, 100A, 600V AC, 2 Pole
• Interrupting Rating at 240 Volts AC: 65,000
• Interrupting Rating at 480 Volts AC: 35,000
• Interrupting Rating at 600 Volts AC: 22,000
• Thermal Magnetic
